Casa ProdottiCappottole di spruzzatura di grandi dimensioniDiesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths

Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths

Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths
Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths
Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths
Informazioni di base
Luogo di origine: Cina
Marca: CoatTech
Certificazione: ISO9001、CE
Numero di modello: CT-PQ-II-III
Quantità di ordine minimo: 1pc
Prezzo: 1000-100000 USD
Imballaggi particolari: Con film e cartone regolari
Tempi di consegna: 30 giorni dopo il deposito
Termini di pagamento: T/t
Capacità di alimentazione: 20ST/mese
Contattaci
Caratteristica: Parti e mobili automatici Wallboard: Pannello EPS da 50 mm, 0,6 acciaio
Drivere con feodirect: Inibitore della ruggine / corrosione Alimentazione elettrica: 380 V/220V/50Hz/60Hz
Sistema di scarico: Fan centrifughi e fan di Turbo Sistema di riscaldamento: Petrolio, a gas e elettrico
Uso previsto: Componenti industriali automobilistici e compatti Sistema di controllo: Relè elettrici standard e interfacce a pulsante

Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths


Big Size Spray Booth System: Key Features‌

  1. ‌Multi-Fuel & Dual-Voltage‌

    • Compatible with diesel, gas, steam, or electricity
    • Supports 380V/50Hz/3Ph or custom voltage for global adaptability

  2. ‌Precision Automation‌

    • PLC touchscreen control for temperature, airflow, and curing cycle optimization

  3. ‌Durable Construction‌

    • Reinforced steel frame with optional insulation (EPS, rock wool, PU, metal)

  4. ‌Customizable Layouts‌

    • Fold/rolling doors for oversized components
    • High-capacity 25,000 m³/h airflow system

  5. ‌Eco-Conscious Performance‌

    • Multi-stage filtration (ceiling, fiberglass, activated carbon)
    • Ensures VOC containment and environmental compliance

‌Summary‌: This industrial-grade spray booth combines energy flexibility, smart automation, and robust design to deliver efficient, compliant painting solutions for large-scale applications.



Specification




Attribute Description Attribute Description
Product Name Large Industrial Spray Coating Booth Power Configuration 380V / 50Hz / 3 Phase (Optional Alternatives)
Fuel Compatibility Supports Diesel, Gas, Steam, or Electric Heating Door Options Folding or Automated Rolling Access Door
Drive System Local or Imported Motor Choices Control Interface Manual Switch Panel or PLC Touch Controller
Panel Insulation EPS / PU Foam / Rock Wool / Metal Panel Options Finish Color White or Custom-Defined Colors
Target Applications Suitable for Buses, Trucks, or Large Metal Parts Energy Input Types Gas, Electricity, or Water Heating Supported


Product Description


The CoatTech Spray Booth‌ combines industrial-grade energy efficiency with robust construction. Its ‌19.5kW synergistic heating system‌ (380V/3Phase) with optional waste heat recovery slashes energy costs, while the ‌6,850mm × 3,850mm × 2,600mm sealed workspace‌ ensures flawless finishes. Built with ‌fire-resistant insulation and galvanized steel‌, this system delivers dust-free, airtight thermal control for professional fleet refinishing.

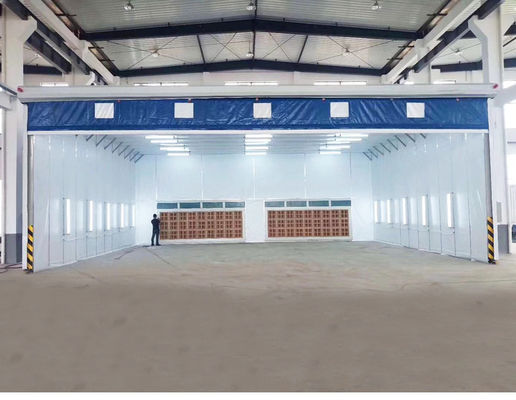

Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths 0
Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths 1
Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths 2
Diesel-Heated Baking Systems for Commercial Fleet Refinishing Large Spray Booths 3
